A New Level of Roof
A Combination of centuries of manufacturing tradition and innovative technology.
Plug-and-play installation , Real-time feedback , No extra tools , Super service-friendly

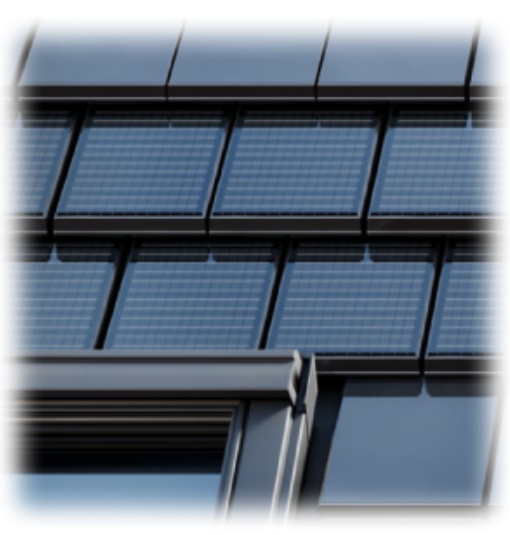

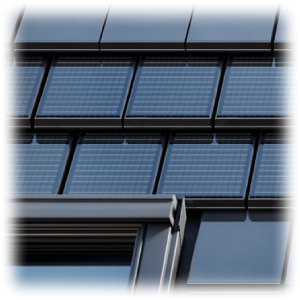

Taking your roofing skills to the next level by turning your roofs into attractive power plants

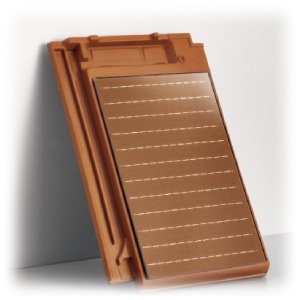

Jacobi-Walther Stylist-PV are installed just like conventional roof tiles – and behave like them, too. That means: They give the roof space for any weather-related movement.
Jacobi-Walther Stylist-PV are installed just like traditional roof tiles. In contrast to conventional solar systems, the job is done once the roof has been tiled. That also applies to the use of scaffolding, cranes or additional manpower on site.
| Electrical Data (STC) | Black | Red Brown |
|---|---|---|
| Nominal output power PMPP | 10 W | 8 W |
| Nominal voltage UMPP | 41 V | 41 V |
| Nominal current lMPP | 0.245 A | 0.195 A |
| Open circuit voltage UOC | 49 V | 49 V |
| Short-circuit current lSC | 0.255 A | 0.205 A |
| Temperature coefficient | -0.40 %/K | -0.40 %/K |
| Dimensions | 270 x 420 mm |
|---|---|
| Solar module size | 210 x 340 mm |
| Mechanical strength | 5400 Pa, hail- and snowproof, walkable |
| Tile material | Clay |
| Solar cells | Monocrystalline silicon solar cells |
| Connector | Proprietary plug system, UV-resistant |
| Connection cable | 2 x 0.75 mm2 solar cable in compliance with EN50618 H1Z2Z2-K |
| Operating temperature | -40 bis +85 °C |
| Covering capacity | 12,2–12,5 tiles/m2 |
|---|---|
| Recommended batten size | 40 x 60 mm |
| Cover length | 350 mm |
| Cover width | 231 mm |
| Weight | 4.7 kg |
Each solar roof tile generates up to 8 or 10 kWh of solar power per year. Geniuses of Excellence-certified roofer installs your solar roof tiles just like regular tiles.

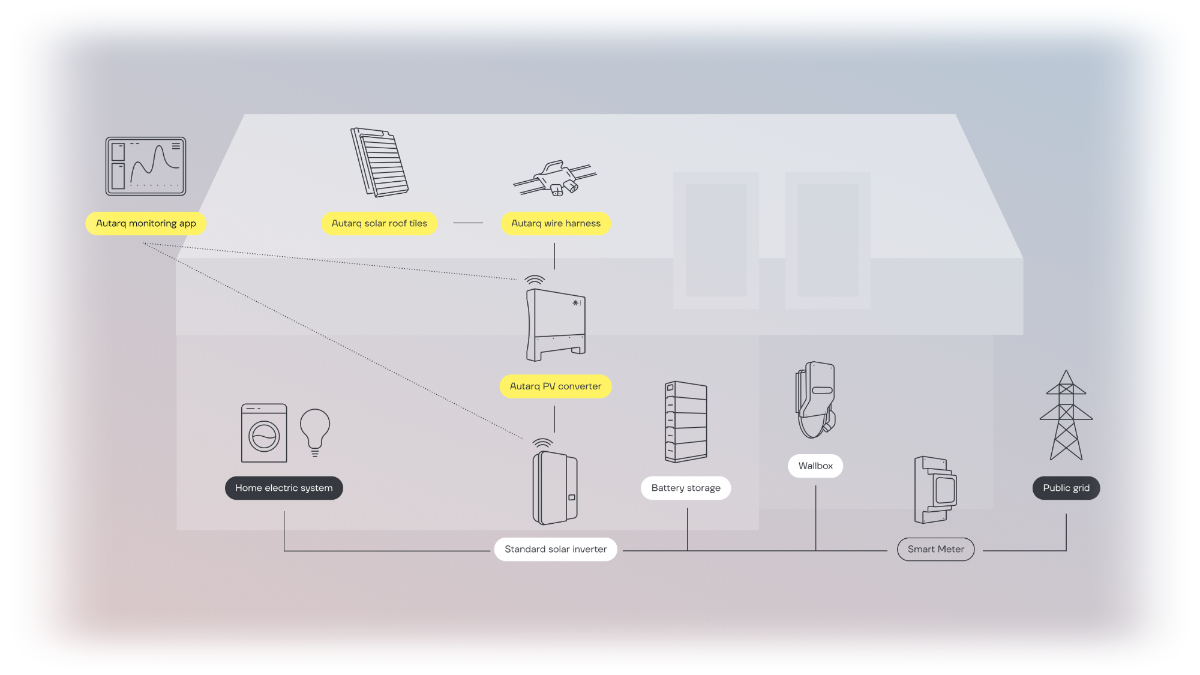

The backbone of an Autarq system: The wire harness, which is installed on the roof by an Geniuses of Excellence prior to the roof tile installation
Transforms the DC voltage generated by a low voltage photovoltaic field (60-120 VDC) into the input voltage for standard solar inverters (200-450 VDC).
Autarq monitoring app provides Autarq solar roof owners with a graphical representation of their solar power yields and monitor how much energy their solar roof is generating every quarter of an hour
Optional Product
All photovoltaic systems generate direct current (DC). But the electricity grid operates on alternating current (AC). A standard solar inverter makes your solar power grid-compatible. It’s indispensable for every solar system.
Optional Product
With a battery storage system, part of the electricity generated during the day can be temporarily stored to be used in the evening or at night. This reduces the amount of electricity drawn from the grid to a minimum
Optional Product
With a home charging station, you can charge your electric car safely and fast. The best thing about it: If you’re not driving your car during the day, its battery can store up to 100 kWh of solar power.

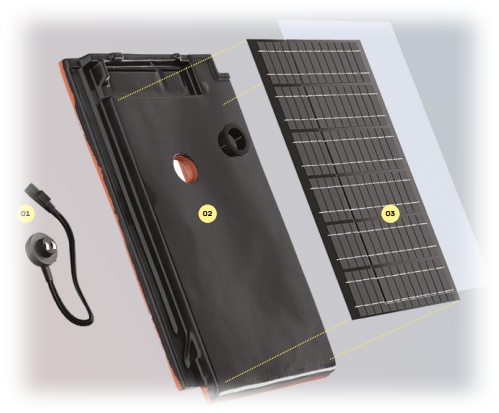

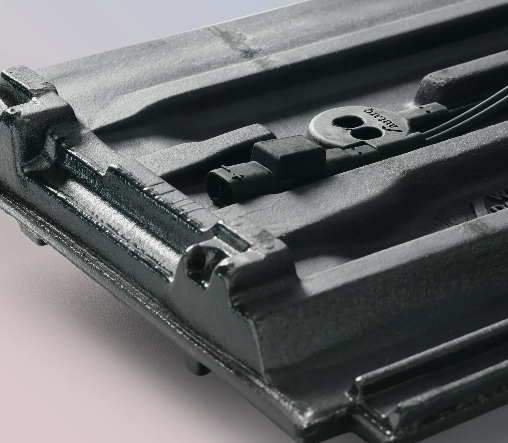

Autarq use same high-quality materials that have proven themselves millions of times over in conventional solar modules. All components are UV and weather resistant, non-toxic and recyclable. Autarq manufacturing processes is based on strict quality criteria and constant production controls.
Same materials as used in conventional solar modules
Just as reliable as the original roof tiles
Jacobi-Walther Stylist-PV are suitable even for complex roof surfaces
Through safe extra low voltage range
Tile impermeability and water drainage remain intact
No power electronics on the roof, tiles can be replaced at any time

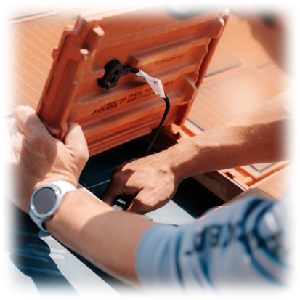

Even without prior electrical Knowledge roof tiles

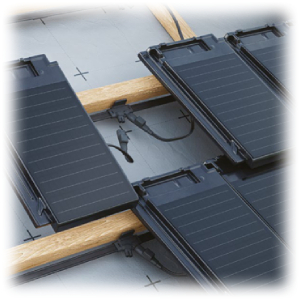

Perfectly ventilated, without drilling or screws

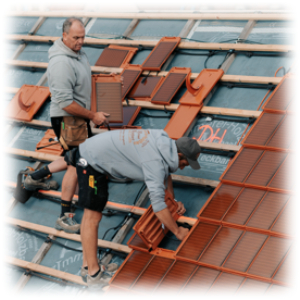

Solar tiles and regular tiles are installed at the same time
| Awards Name | Year |
|---|---|
| German Innovation Award | 2023 |
| German Design Award Winner | 2023 |
| RedDot Design Award | 2023 |
| iF Design Award | 2023 |
| Architects’ Darling - Best Product Innovation | 2023 |
| TOP 100: Awards honors most innovative companies in Germany | 2023 |
| Start Up Energy Transition: SET100 Award | 2023 |
